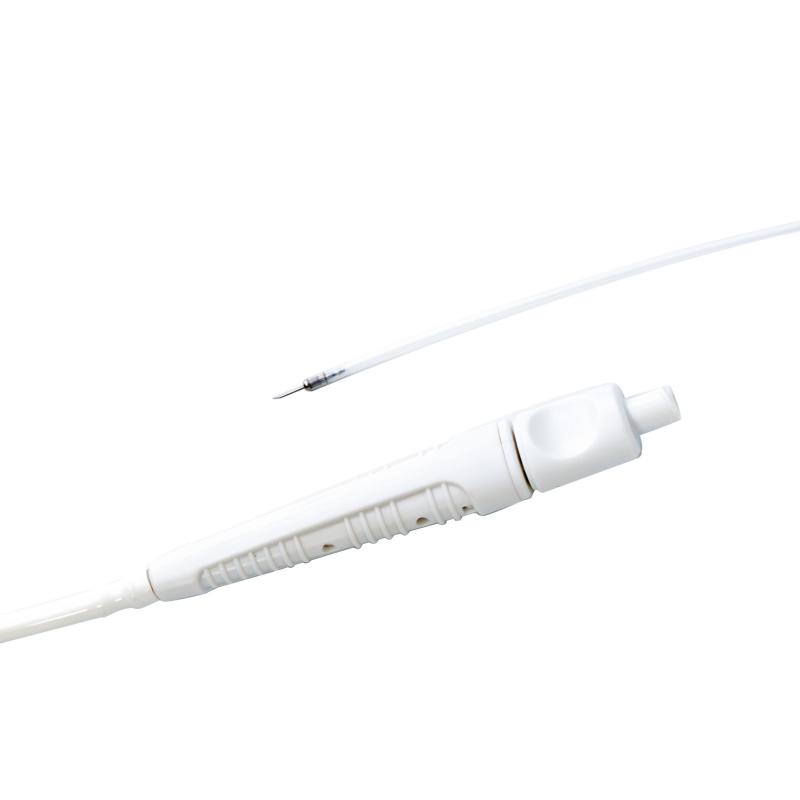

DISPOSABLE INJECTION NEEDLE FOR ERCP
DISPOSABLE INJECTION NEEDLE FOR ERCP
Product Detail
1. Needle Gauge: 21G, 22G, 23G, 25G options
2. Needle Extension: 4mm, 5mm, 6mm, 8mm, 10mm
3. :Sheath Outer Diameter: 1.8mm – 2.4mm
4. Working Length: 1200mm – 2300mm
5. Sheath Material: PTFE (Polytetrafluoroethylene)
6. Needle Material: Medical-grade Stainless Steel
7. Handle Type: Sliding with locking positions
8. Sterilization: Ethylene Oxide (EO) Gas
Application :
✅ Core Uses:
Zero infection, zero dulling, zero reprocessing – just sharp, safe performance every time.
● Endoscopic Mucosal Resection (EMR) – Submucosal lifting of polyps and early GI neoplasms.
● Endoscopic Submucosal Dissection (ESD) – Hydrodissection for safe en bloc resection.
● Sclerotherapy – Injection of sclerosant into esophageal and gastric varices.
● Hemorrhoid sclerotherapy – Injection of sclerosant into internal hemorrhoids.
● Lesion tattooing – Preoperative marking of GI lesions for surgical localization.
● ERCP contrast injection – Opacification of biliary and pancreatic ducts.
● Local drug delivery – Targeted injection of chemotherapy or other therapeutic agents.
Specification
|
Model |
Diameter D±0.1(mm) |
Working Length L±50(mm) |
Needle Size (diameter/length) |
Working Channel |
|
ZRH-PN-1812-254 |
Φ1.8 |
1200 |
25 G,4mm |
≥2.0 |
|
ZRH-PN-2418-214 |
Φ2.4 |
1800 |
21 G,4mm |
≥2.8 |
|
★ZRH-PN-2418-234 |
Φ2.4 |
1800 |
23 G,4mm |
≥2.8 |
|
ZRH-PN-2418-254 |
Φ2.4 |
1800 |
25 G,4mm |
≥2.8 |
|
ZRH-PN-2418-216 |
Φ2.4 |
1800 |
21 G,6mm |
≥2.8 |
|
ZRH-PN-2418-236 |
Φ2.4 |
1800 |
23 G,6mm |
≥2.8 |
|
ZRH-PN-2418-256 |
Φ2.4 |
1800 |
25 G,6mm |
≥2.8 |
|
ZRH-PN-2423-214 |
Φ2.4 |
2300 |
21 G,4mm |
≥2.8 |
|
ZRH-PN-2423-234 |
Φ2.4 |
2300 |
23 G,4mm |
≥2.8 |
|
ZRH-PN-2423-254 |
Φ2.4 |
2300 |
25 G,4mm |
≥2.8 |
|
ZRH-PN-2423-216 |
Φ2.4 |
2300 |
21 G,6mm |
≥2.8 |
|
★ZRH-PN-2423-236 |
Φ2.4 |
2300 |
23 G,6mm |
≥2.8 |
|
ZRH-PN-2423-256 |
Φ2.4 |
2300 |
25 G,6mm |
≥2.8 |
|
★ Commonly selected models |
||||
FAQ
From ZRH med.
Producing Lead Time: 2-3 weeks after payment received, depends on your order quantity
Delivery Method:
1. By Express: Fedex, UPS, TNT, DHL, SF express 3-5day, 5-7days.
2. By Road: Domestic and neighbour country : 3-10 days
3. By Sea : 5-45 day all over the world.
4. By Air : 5-10 days all over the world.
Loading Port:
Shenzhen, Yantian, Shekou, Hong Kong, Xiamen, Ningbo, Shanghai, Nanjing, Qingdao
According to your requirement.
Delivery Terms:
EXW, FOB, CIF, CFR, C&F, DDU, DDP, FCA, CPT
Shipping Documents:
B/L, Commercial Invoice, Packing List
● Single-Use Safety – Eliminates cross-contamination risk; no reprocessing required
● Proven Biocompatibility – Meets ISO 10993 standards for cytotoxicity, sensitization, and systemic toxicity
● EO Sterilized – Validated sterilization process ensures product sterility
● Scope Compatibility – Available in multiple sheath diameters to accommodate various endoscopic working channels (≥2.0mm – ≥2.8mm)
● Immediate Readiness – Ready to use straight from the pouch – open and go
Engineered for reliable performance in demanding anatomical conditions, this needle enables accurate contrast injection, targeted drug delivery, and submucosal lifting with minimal tissue trauma
Clinical Use
● EMR/ESD lifting – Inject fluid to raise the lesion before resection.
●Sclerotherapy – Deliver sclerosant into varices or hemorrhoids.
●Contrast injection – Inject dye for fluoroscopic guidance.
●Drug delivery – Administer local therapeutic agents.
●Tattooing – Mark lesions for future surgical localization.
