DISPOSABLE INJECTION NEEDLE FOR ERCP
DISPOSABLE INJECTION NEEDLE FOR ERCP
Product Detail
1. Single-use endoscopic accessory specifically engineered for Endoscopic Retrograde Cholangiopancreatography (ERCP) procedures.

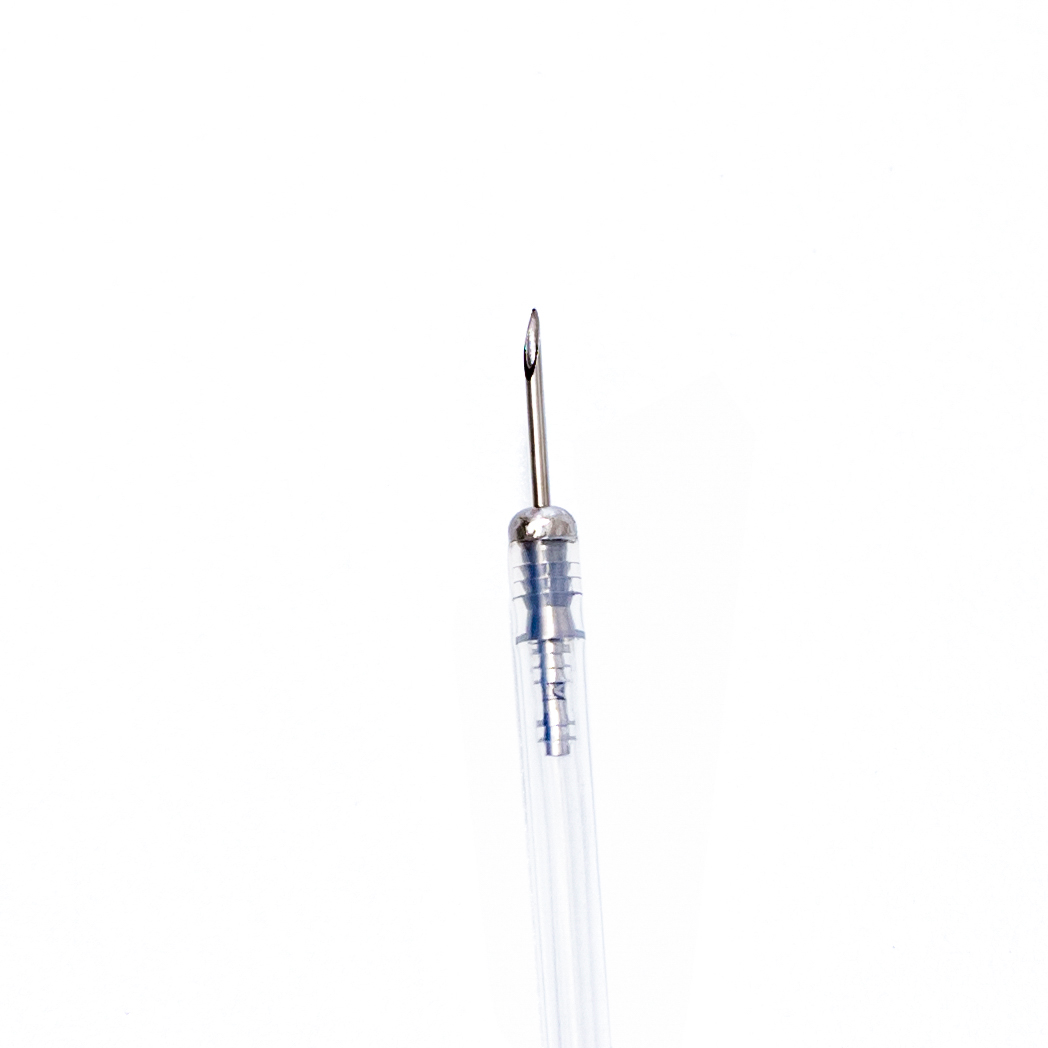

2. Features a stainless steel spring sheath with a Teflon coating that virtually eliminates kinking during tortuous insertions.
3. Available in 23G and 25G needle gauges.
4. Needle projection options of 4mm or 5mm.
5. Working length of 2300mm to accommodate the extended working channel of side-viewing duodenoscopes.
6. Inner catheter design reduces internal friction during guidewire or contrast delivery.
7. Luer-lock spring-loaded handle allows for precise needle projection and retraction.
Application :
✅ Core Uses:
The primary intended use. Delivers contrast media into the biliary and pancreatic ducts under fluoroscopic guidance to enable cholangiography and pancreatography during ERCP procedures.
● Intended for use during ERCP procedures for contrast injection into the biliary and pancreatic ducts.
● Intended for use during ERCP procedures for contrast injection into the biliary and pancreatic ducts..
● Specifically designed to function with side-viewing duodenoscopes.
● Allows the endoscopist to perform selective cannulation of the desired duct
● Supports both contrast-assisted cannulation and guidewire-assisted techniques
● Offers procedural flexibility based on physician preference
Specification
|
Model |
Diameter D±0.1(mm) |
Working Length L±50(mm) |
Needle Size (diameter/length) |
Working Channel |
|
ZRH-PN-1812-254 |
Φ1.8 |
1200 |
25 G,4mm |
≥2.0 |
|
ZRH-PN-2418-214 |
Φ2.4 |
1800 |
21 G,4mm |
≥2.8 |
|
★ZRH-PN-2418-234 |
Φ2.4 |
1800 |
23 G,4mm |
≥2.8 |
|
ZRH-PN-2418-254 |
Φ2.4 |
1800 |
25 G,4mm |
≥2.8 |
|
ZRH-PN-2418-216 |
Φ2.4 |
1800 |
21 G,6mm |
≥2.8 |
|
ZRH-PN-2418-236 |
Φ2.4 |
1800 |
23 G,6mm |
≥2.8 |
|
ZRH-PN-2418-256 |
Φ2.4 |
1800 |
25 G,6mm |
≥2.8 |
|
ZRH-PN-2423-214 |
Φ2.4 |
2300 |
21 G,4mm |
≥2.8 |
|
ZRH-PN-2423-234 |
Φ2.4 |
2300 |
23 G,4mm |
≥2.8 |
|
ZRH-PN-2423-254 |
Φ2.4 |
2300 |
25 G,4mm |
≥2.8 |
|
ZRH-PN-2423-216 |
Φ2.4 |
2300 |
21 G,6mm |
≥2.8 |
|
★ZRH-PN-2423-236 |
Φ2.4 |
2300 |
23 G,6mm |
≥2.8 |
|
ZRH-PN-2423-256 |
Φ2.4 |
2300 |
25 G,6mm |
≥2.8 |
|
★ Commonly selected models |
||||
FAQ
From ZRH med.
Producing Lead Time: 2-3 weeks after payment received, depends on your order quantity
Delivery Method:
1. By Express: Fedex, UPS, TNT, DHL, SF express 3-5day, 5-7days.
2. By Road: Domestic and neighbour country : 3-10 days
3. By Sea : 5-45 day all over the world.
4. By Air : 5-10 days all over the world.
Loading Port:
Shenzhen, Yantian, Shekou, Hong Kong, Xiamen, Ningbo, Shanghai, Nanjing, Qingdao
According to your requirement.
Delivery Terms:
EXW, FOB, CIF, CFR, C&F, DDU, DDP, FCA, CPT
Shipping Documents:
B/L, Commercial Invoice, Packing List
● Enhanced Procedural Efficiency – Less priming time and less contrast waste, saving costs.
● Enhanced Procedural Efficiency – Less priming time and less contrast waste, saving costs.
● Reduced Risk of Scope Damage – Spring-loaded retraction and distal metal hub protect the duodenoscope channel.
● Lower Repair Costs and Downtime – Minimizes costly scope repairs and operational downtime.
● Reliable in Challenging Anatomy – Teflon-coated sheath resists kinking, avoiding mid-procedure device replacement..
Disposable ERCP Injection Needle | Spring-Loaded Retractable Endoscopic Injection Needle | 21G–25G | Sterile Single-Use.
Clinical Use
● EMR/ESD lifting – Inject fluid to raise the lesion before resection.
● Sclerotherapy – Deliver sclerosant into varices or hemorrhoids.
● Contrast injection – Inject dye for fluoroscopic guidance.
● Drug delivery – Administer local therapeutic agents.
● Tattooing – Mark lesions for future surgical localization.
