Sterile and single-use Disposable Stone Retrieval Baskets
Sterile and single-use Disposable Stone Retrieval Baskets
Product Detail
● Polyamide/PTFE/polyethylene sheath

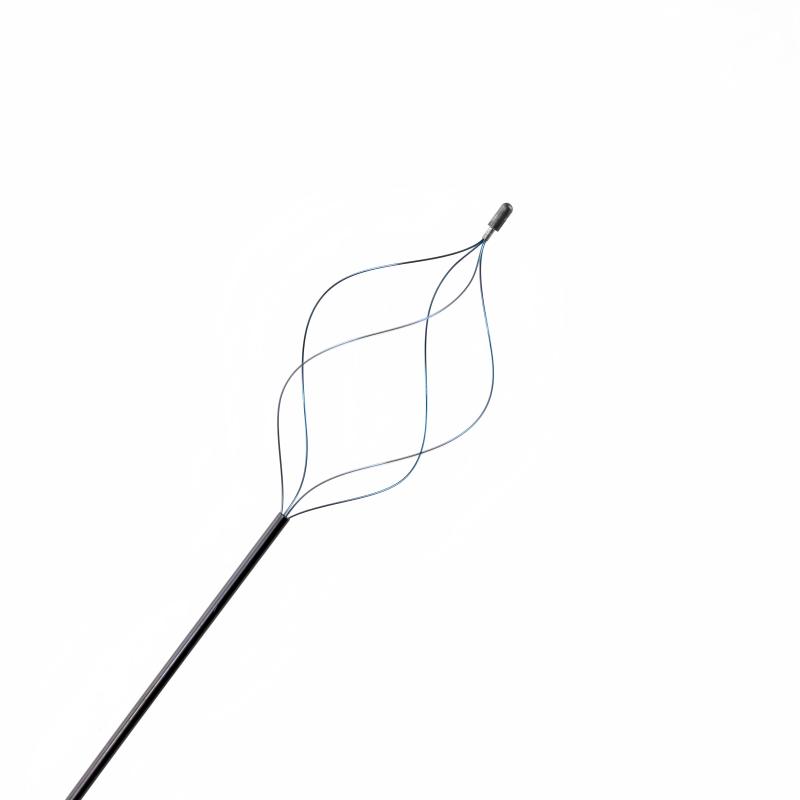

● With a refractory material tip at the distal end
● Sterile straight handle
● Sterile and single-use
● With 3 detachable labels for traceability control
Application
✅ Core Uses:
The product is a minimally invasive endoscopic tool primarily designed to grasp, relocate, and remove urinary stones during ureteroscopic procedures.
Specification
|
Model |
Outer Sheath OD±0.1 |
Working Length ±10% (mm) |
Basket Opening Size E.2E (mm) |
Wire Type |
|
|
Fr |
mm |
||||
|
ZRH-WA-F1.7-1208 |
1.7 |
0.56 |
1200 |
8 |
Three Wires |
|
ZRH-WA-F1.7-1215 |
1200 |
15 |
|||
|
ZRH-WA-F2.2-1208 |
2.2 |
0.73 |
1200 |
8 |
|
|
ZRH-WA-F2.2-1215 |
1200 |
15 |
|||
|
ZRH-WA-F3-1208 |
3 |
1 |
1200 |
8 |
|
|
ZRH-WA-F3-1215 |
1200 |
15 |
|||
|
ZRH-WB-F1.7-1210 |
1.7 |
0.56 |
1200 |
10 |
Four Wires |
|
ZRH-WB-F1.7-1215 |
1200 |
15 |
|||
|
ZRH-WB-F2.2-1210 |
2.2 |
0.73 |
1200 |
10 |
|
|
ZRH-WB-F2.2-1215 |
1200 |
15 |
|||
|
ZRH-WB-F3-1210 |
3 |
1 |
1200 |
10 |
|
|
ZRH-WB-F3-1215 |
1200 |
15 |
|||
|
ZRH-WB-F4.5-0710 |
4.5 |
1.5 |
700 |
10 |
|
|
ZRH-WB-F4.5-0715 |
700 |
15 |
|||
FAQ
From ZRH med.
Producing Lead Time: 2-3 weeks after payment received, depends on your order quantity
Delivery Method:
1. By Express: Fedex, UPS, TNT, DHL, SF express 3-5day, 5-7days.
2. By Road: Domestic and neighbour country : 3-10 days
3. By Sea : 5-45 day all over the world.
4. By Air : 5-10 days all over the world.
Loading Port:
Shenzhen, Yantian, Shekou, Hong Kong, Xiamen, Ningbo, Shanghai, Nanjing, Qingdao
According to your requirement.
Delivery Terms:
EXW, FOB, CIF, CFR, C&F, DDU, DDP, FCA, CPT
Shipping Documents:
B/L, Commercial Invoice, Packing List
Product advantages
● Guidewire Compatibility: Enables concurrent use of a safety guidewire throughout the procedure.
● Ergonomic Control Handle: Allows precise opening, closing, and rotation of the basket.
● Smooth Tapered Tip: Minimizes tissue trauma during insertion and retrieval.
● Hydrophilic Sheath Coating: Pre-sterilized single-use for safety and consistent performance.
● Flexible and Maneuverable Nitinol Design: Engineered with a shape memory alloy core for optimal kink resistance and smooth navigation through complex urinary tract anatomy.
Clinical Use

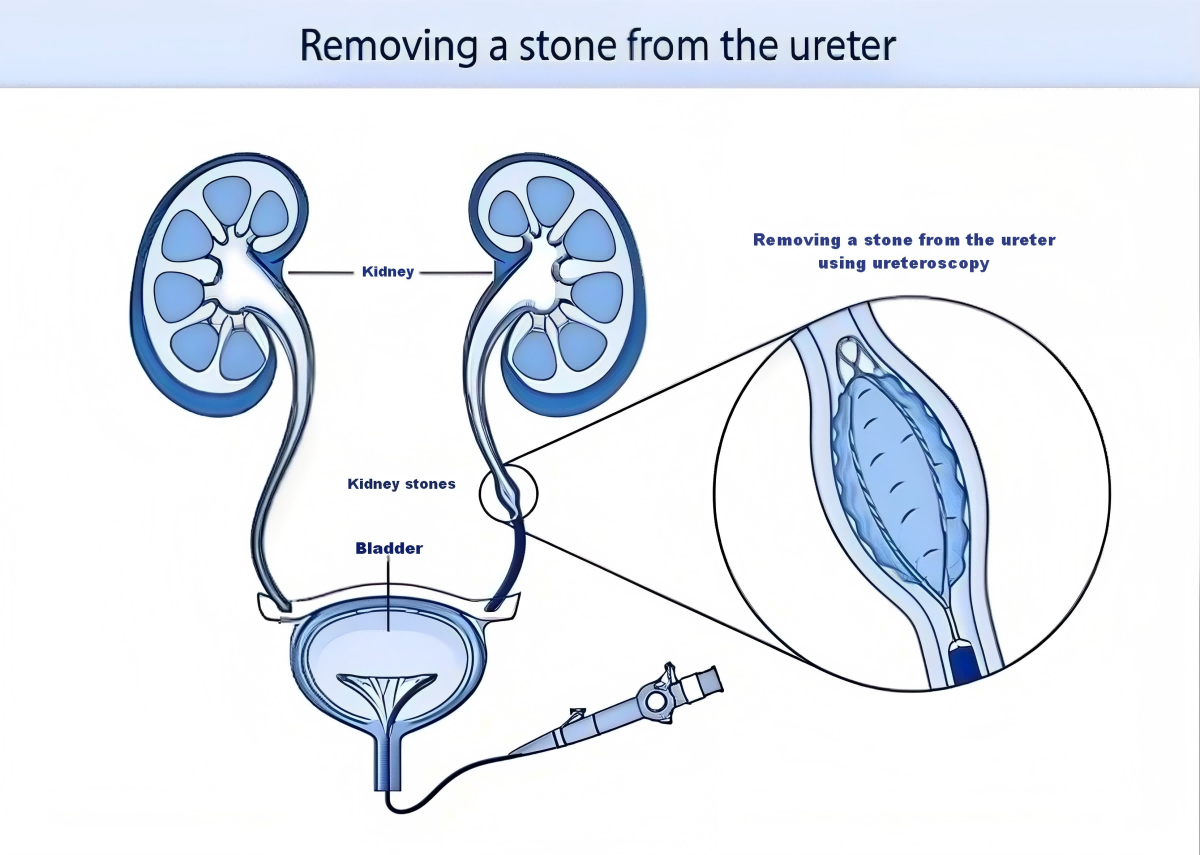

This device is primarily used in ureteroscopic procedures to capture, reposition, and extract stones from the upper urinary tract. Its key applications include:
- 1. Ureteral & Renal Stone Removal: Direct extraction of stones during ureteroscopy (URS).
- 2. Post-Lithotripsy Fragment Clearance: Retrieval of residual fragments after laser or mechanical stone fragmentation.
- 3. Stone Relocation: Repositioning stones to facilitate safer or more effective treatment.
- 4. Auxiliary Intervention: Removal of migrated stents or small foreign bodies in select cases.
Objective: To achieve efficient stone clearance with minimized tissue trauma and enhanced procedural control.
