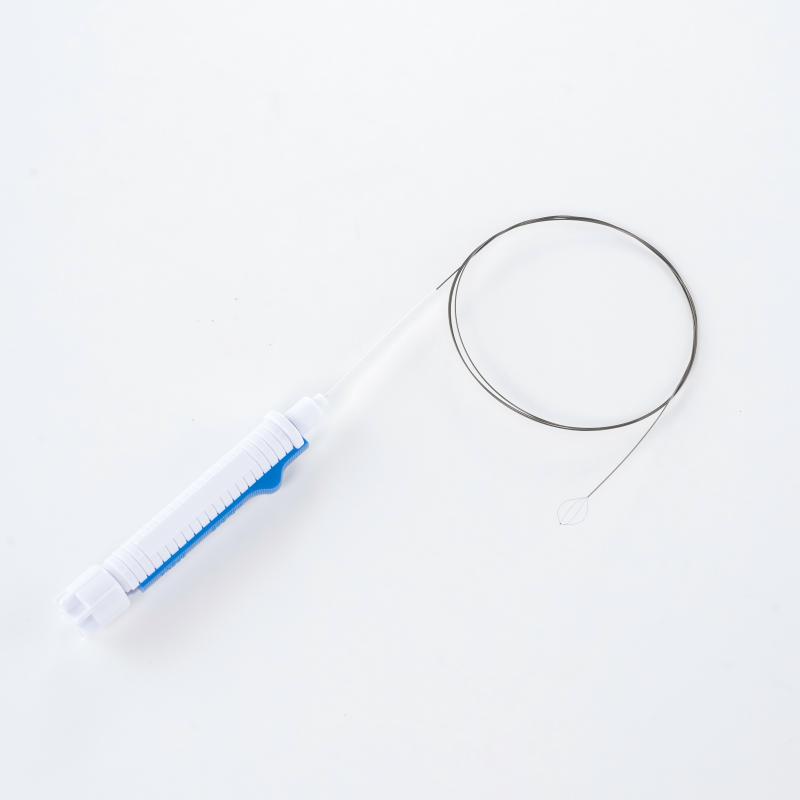

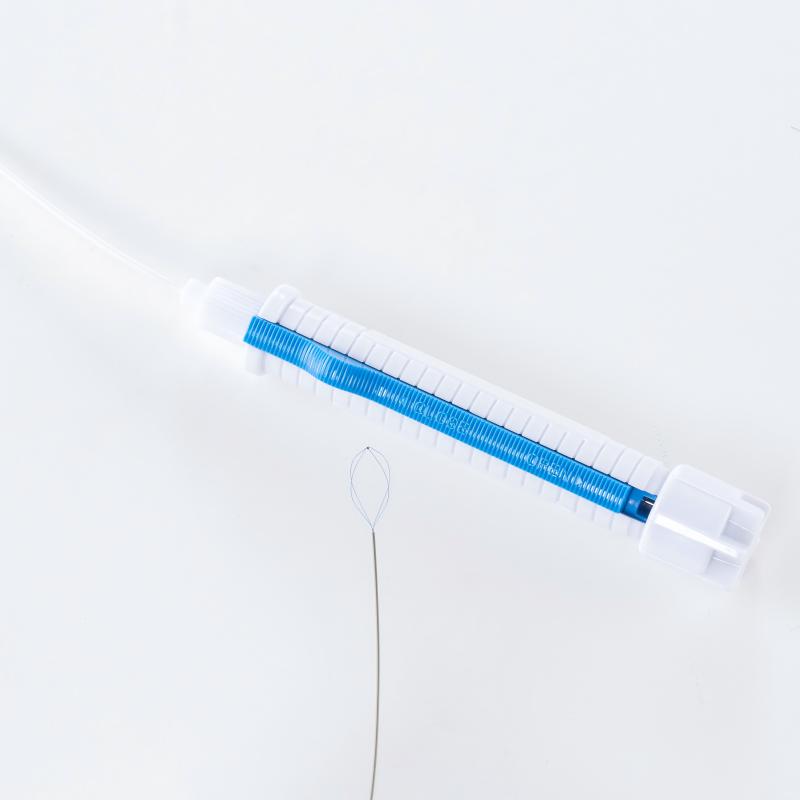

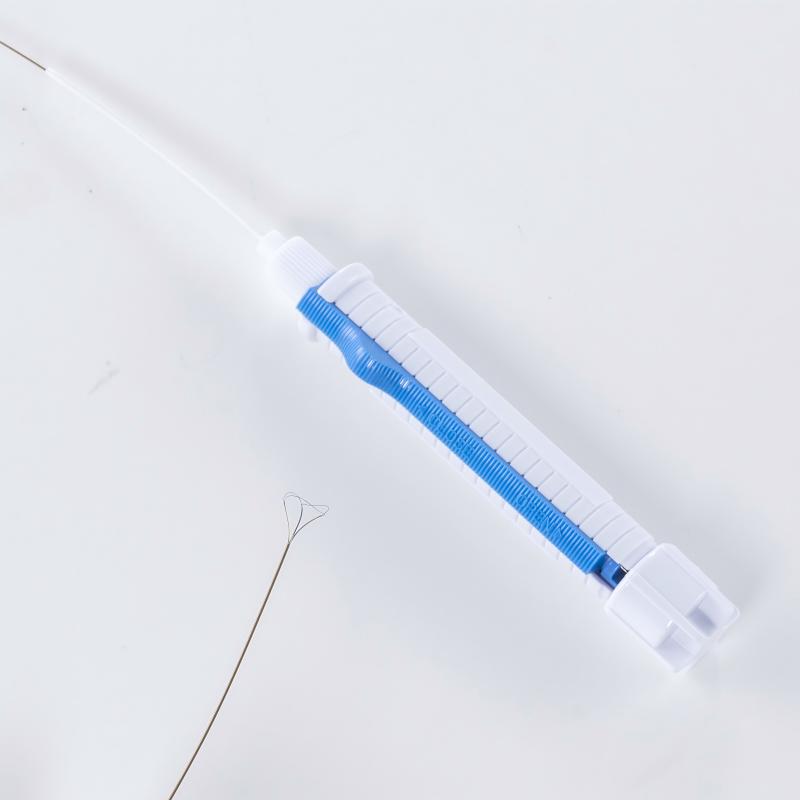

Renal Stone Removal: Flexible Nitinol Stone Basket
Renal Stone Removal: Flexible Nitinol Stone Basket
Product Detail:
● 1. Made of nickel-titanium alloy, it maintains its shape even under extreme torsion.
● 2. Smooth sheath design improves insertion ease.
● 3. Available in a minimum diameter of 1.7 Fr, ensuring adequate irrigation flow and flexible endoscope bending angles during surgery.
● 4. Available in various sizes to meet diverse surgical needs.
Application
✅ Core Uses:
The product is designed for grasping, manipulating, and removing stones and other foreign objects under endoscopic visualization during urological diagnosis and treatment.
|
Model |
Outer Sheath OD±0.1 |
Working Length ±10% (mm) |
Basket Opening Size E.2E (mm) |
Wire Type |
|
|
Fr |
mm |
||||
|
ZRH-WA-F1.7-1208 |
1.7 |
0.56 |
1200 |
8 |

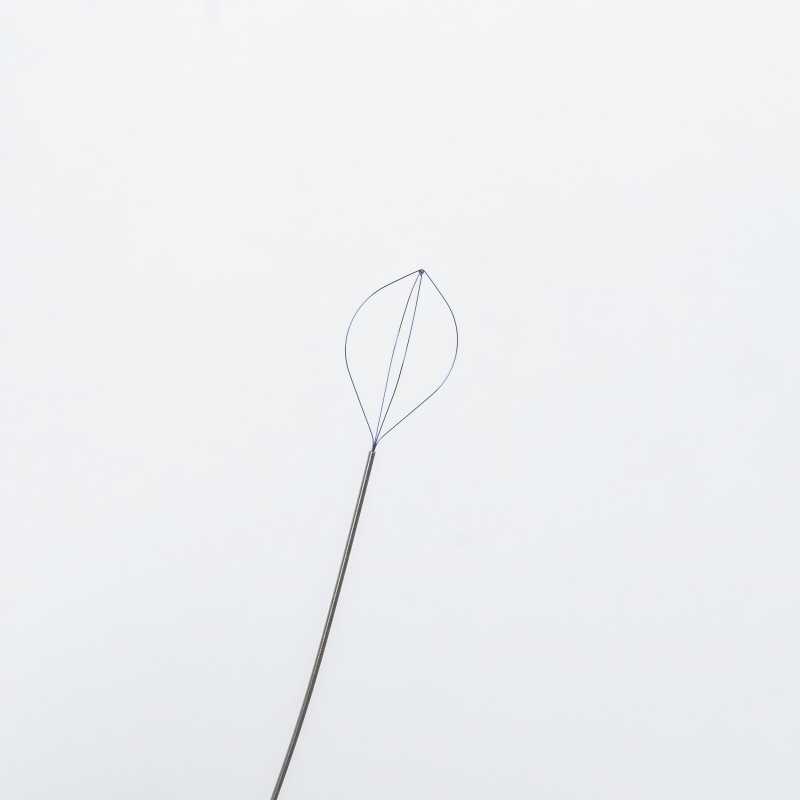

Three Wires |
|
ZRH-WA-F1.7-1215 |
1200 |
15 |
|||
|
ZRH-WA-F2.2-1208 |
2.2 |
0.73 |
1200 |
8 |
|
|
ZRH-WA-F2.2-1215 |
1200 |
15 |
|||
|
ZRH-WA-F3-1208 |
3 |
1 |
1200 |
8 |
|
|
ZRH-WA-F3-1215 |
1200 |
15 |
|||
|
ZRH-WB-F1.7-1210 |
1.7 |
0.56 |
1200 |
10 |

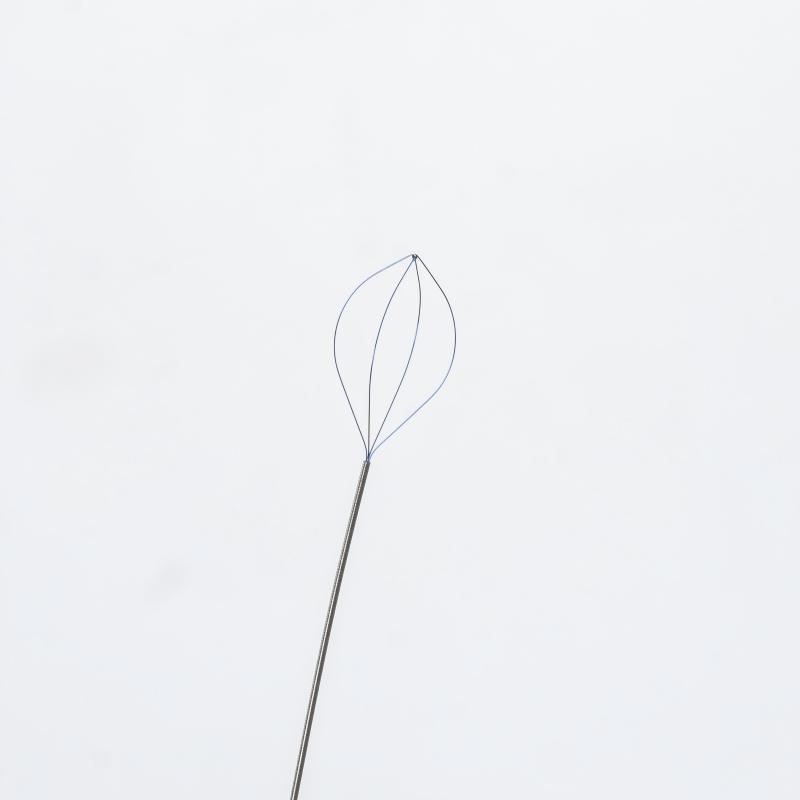

Four Wires |
|
ZRH-WB-F1.7-1215 |
1200 |
15 |
|||
|
ZRH-WB-F2.2-1210 |
2.2 |
0.73 |
1200 |
10 |
|
|
ZRH-WB-F2.2-1215 |
1200 |
15 |
|||
|
ZRH-WB-F3-1210 |
3 |
1 |
1200 |
10 |
|
|
ZRH-WB-F3-1215 |
1200 |
15 |
|||
|
ZRH-WB-F4.5-0710 |
4.5 |
1.5 |
700 |
10 |
|
|
ZRH-WB-F4.5-0715 |
700 |
15 |
|||
FAQ
From ZRH med.
Producing Lead Time: 2-3 weeks after payment received, depends on your order quantity
Delivery Method:
1. By Express: Fedex, UPS, TNT, DHL, SF express 3-5day, 5-7days.
2. By Road: Domestic and neighbour country : 3-10 days
3. By Sea : 5-45 day all over the world.
4. By Air : 5-10 days all over the world.
Loading Port:
Shenzhen, Yantian, Shekou, Hong Kong, Xiamen, Ningbo, Shanghai, Nanjing, Qingdao
According to your requirement.
Delivery Terms:
EXW, FOB, CIF, CFR, C&F, DDU, DDP, FCA, CPT
Shipping Documents:
B/L, Commercial Invoice, Packing List
Product advantages
● Nitinol Core: Shape-memory alloy for kink resistance and smooth navigation.
● Precision Deployment Handle: Smooth mechanism for controlled basket opening/closing.

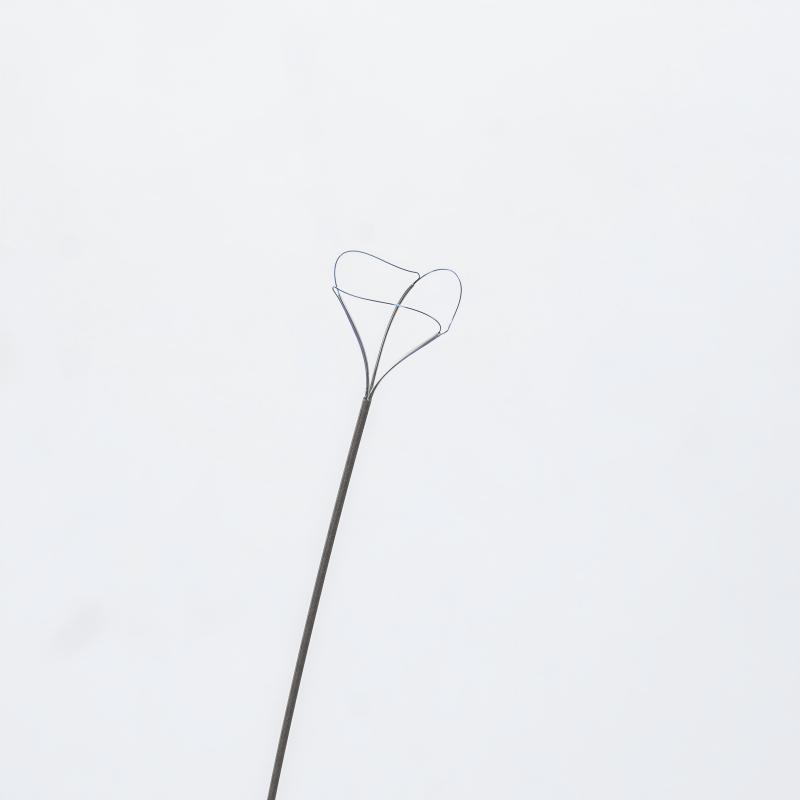

● Configurable Baskets: Helical, flat-wire, and spherical designs for various stones.

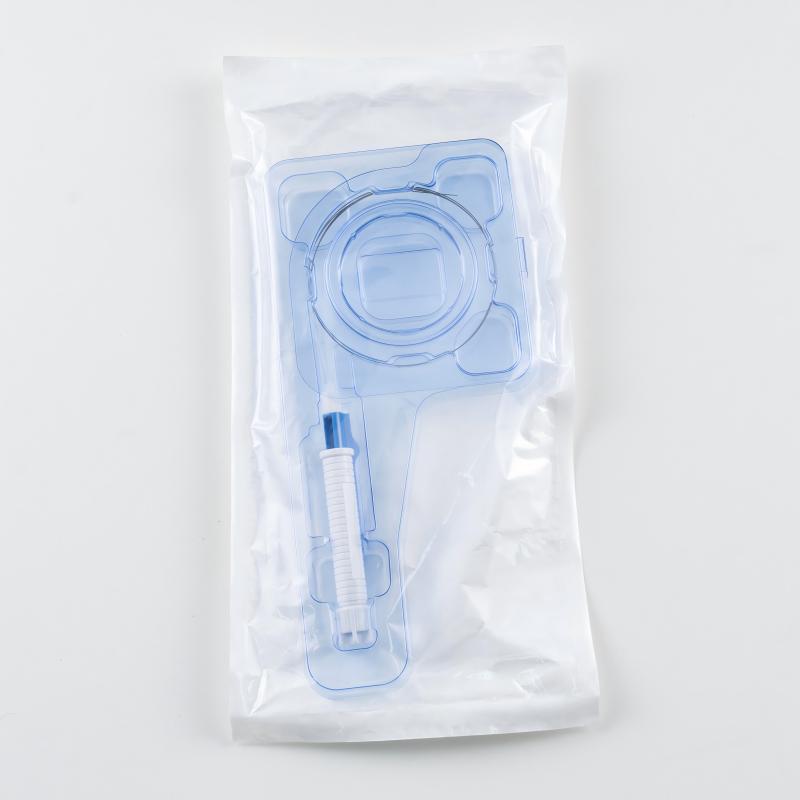

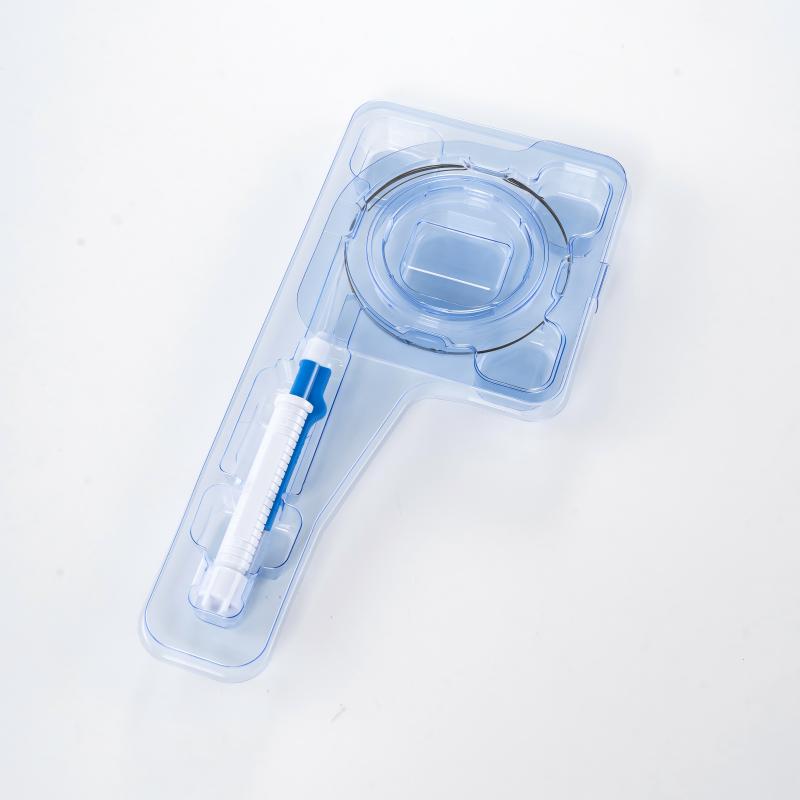

● Disposable & Sterile: Pre-sterilized single-use for safety and consistent performance.

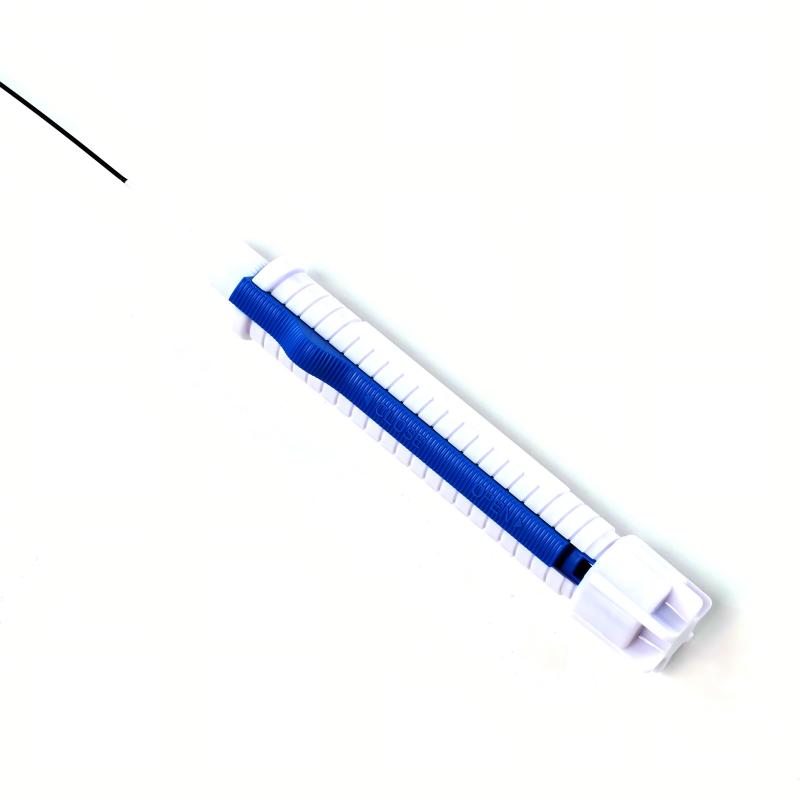

Precision Handle: Ergonomic mechanism for controlled basket manipulation.
Hydrophilic Coated Sheath: Durable, low-friction coating for enhanced pushability.
Clinical Use
It is primarily used in minimally invasive endoscopic procedures to grasp and remove stones from within the ureter or kidney. Common applications include:

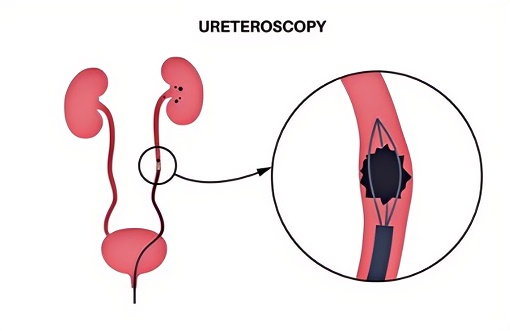

1.Ureteroscopic Surgery: Directly capturing and extracting stones or larger fragments post-lithotripsy from the ureter or renal pelvis.
2.Stone Management: Grasping, relocating, or removing stones to assist in achieving a stone-free state.
3.Auxiliary Procedures: Occasionally used for obtaining biopsies or removing small foreign bodies in the ureter.
The core objective is to safely and effectively clear stones while minimizing tissue trauma.
