Hydrophilic Coating Disposable Flexible and Navigable Suction Ureteral Access Sheath
Hydrophilic Coating Disposable Flexible and Navigable Suction Ureteral Access Sheath
Product Detail
Disposable Ureteral Access Sheath With Suction is designed for the effective and efficient treatment of urinary stones using Negative Pressure Aspiration through an oblique side port on the sheath. It has high stone clearance rate, reduces the intra-luminal pressure in the urinary tract, prevents stone retropulsion, improves visual field, obviates the need of stone baskets, forceps, or any anti-retropulsion devices, and saves operating time.
Features
Hydrophilic Coating
Hydrophilic coating at both inner and outer tube to avoid damage to the urinary tract and facilitate the discharge of calculus fragments

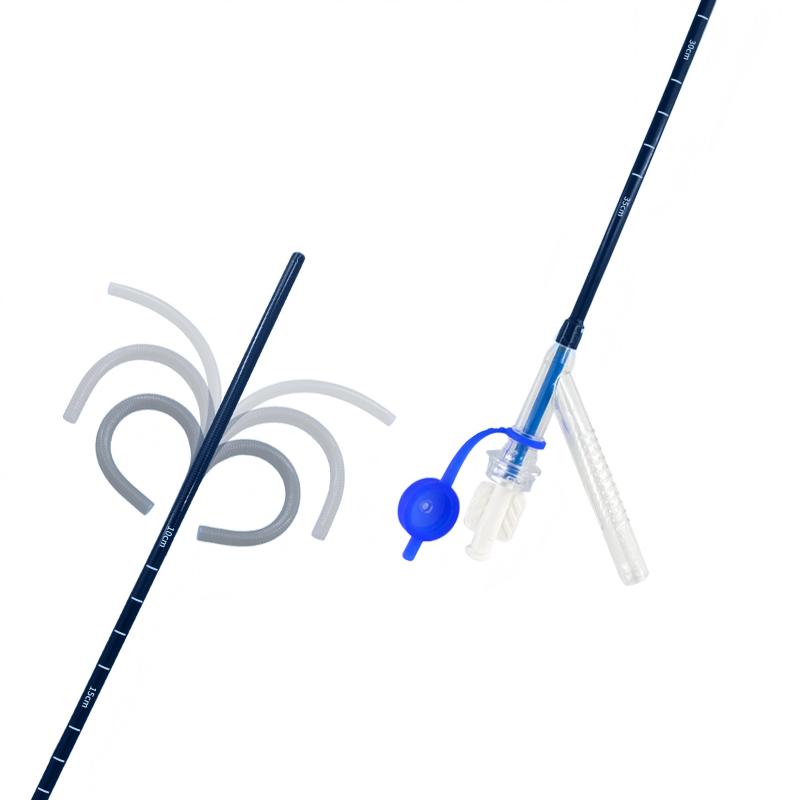

Passive bending
The front end facilitates to passively bend via endoscope to observe the stone in narrow renal calyx and improve visual field
High Efficiency
Clear the stone during smashing to save the surgery time, mean-while, improve the stone clearance rate
Soft and Smooth Design

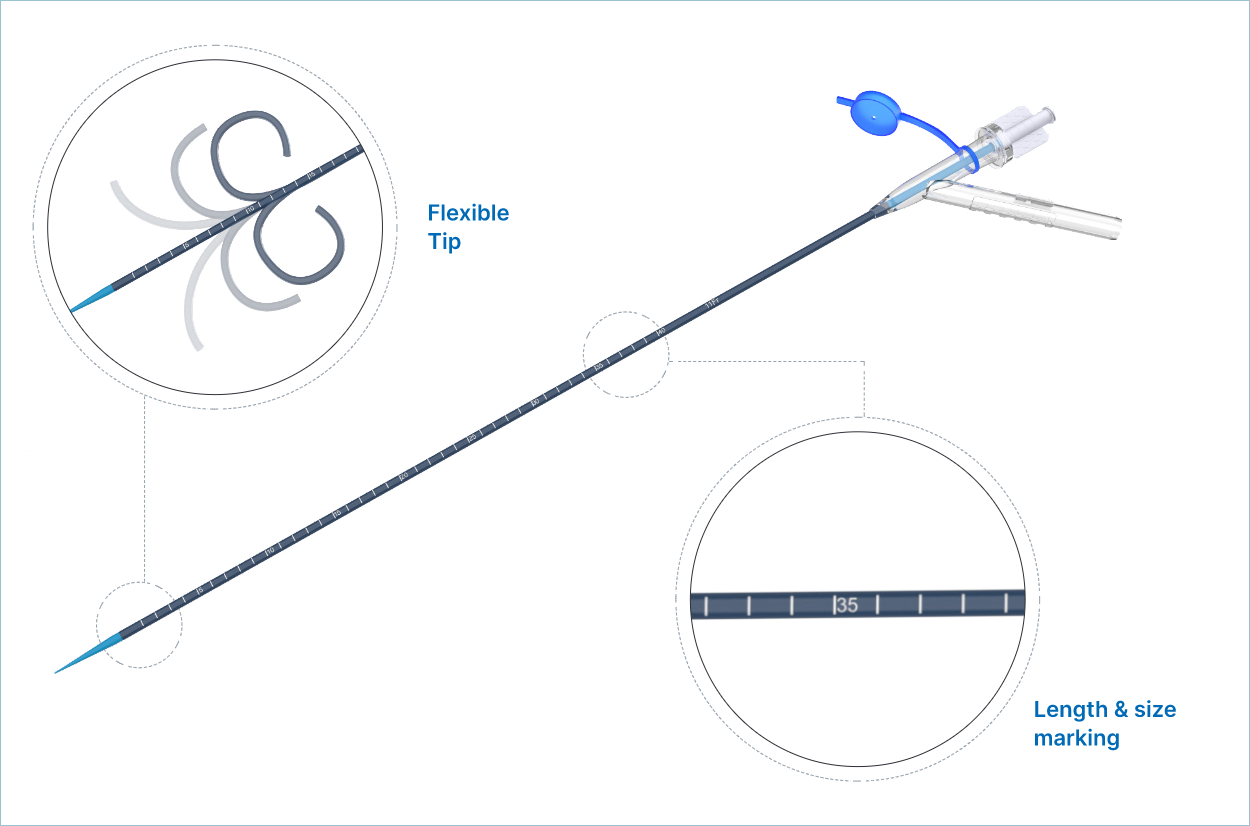

Flexible tip and smooth transition of connection port to protect ureter and device from damage during access
Multi-Specification Available
Meet the different needs of clinical practice
Core Reinforced
The core consists of a special reinforced coil construction to provide optimal flexibility and maximum resistance to kinking and compression
Stone Filtration and Collection
A filter is designed to collect fragments and prevent suction tube from being blocked. ZRHmed provides two models of collection bottles.
Suction Pressure Control Sliding Cover
Open or close the lateral suction hole to control intrarenal pressure and suck out stone fragment
Specification
|
Model |
Sheath ID (Fr) |
Sheath ID (mm) |
Length (mm) |
|
ZRH-NQG-9-50-Y |
9 |
3.0 |
500 |
|
ZRH-NQG-10-40-Y |
10 |
3.33 |
400 |
|
ZRH-NQG-10-50-Y |
10 |
3.33 |
500 |
|
ZRH-NQG-11-40-Y |
11 |
3.67 |
400 |
|
ZRH-NQG-11-50-Y |
11 |
3.67 |
500 |
|
ZRH-NQG-12-40-Y |
12 |
4.0 |
400 |
|
ZRH-NQG-12-50-Y |
12 |
4.0 |
500 |
|
ZRH-NQG-13-40-Y |
13 |
4.33 |
400 |
|
ZRH-NQG-13-50-Y |
13 |
4.33 |
500 |
|
ZRH-NQG-14-40-Y |
14 |
4.67 |
400 |
|
ZRH-NQG-14-50-Y |
14 |
4.67 |
500 |
|
ZRH-NQG-16-40-Y |
16 |
5.33 |
400 |
|
ZRH-NQG-16-50-Y |
16 |
5.33 |
500 |
